Echoscope4G® Surface

Echoscope4G® Surface

3D

The latest generation of real-time 3D Sonar, reimagined, re-engineered, and repackaged.

Overview

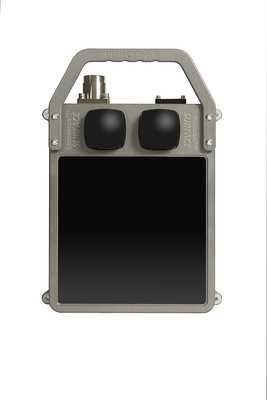

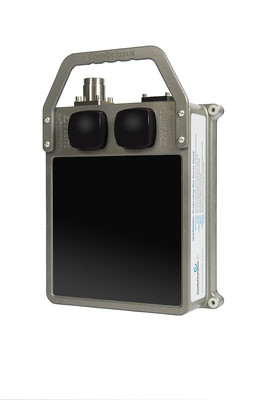

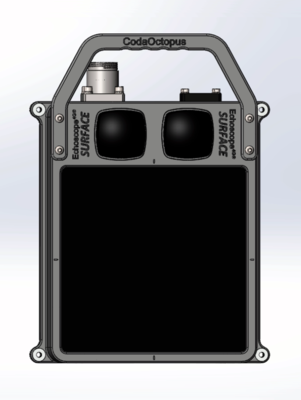

In our constant drive for innovation, we are proud to announce this newest addition to the revolutionary 3D, real-time imaging sonar family. The Echoscope4G® Surface is our latest 3D sonar which offers our unique high resolution, real-time 3D imaging, and mapping in a lighter, smaller, and lower cost platform. The first product of our new fourth-generation technology. The Surface benefits from the latest in data and image processing hardware in a package that is 50 percent lighter, 40 percent smaller, and has a 30 percent lower power requirement.

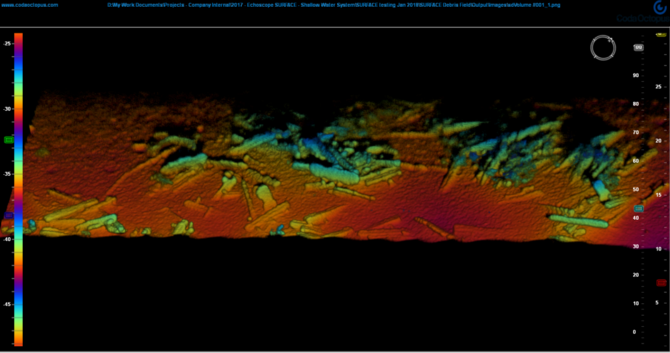

While the Echoscope® family of sonars are rated at 600 meters to serve the needs of ROVs, AUVs, and other similar vessels, the Surface enters a new, distinct market space for shallow water system operations, rated to a depth of 20 meters. This plug-and-play solution is built around our unique patented technology to generate a complete 3D model - composed of over 16,000 soundings from every acoustic transmission, refreshed up to 20 Hz.

The Echoscope4G Surface series is offered in three distinct frequencies, 240/315/630 kHz, and can be configured to the customer's specific requirements. This flexibility enables the full range of Echoscope functions from ultra-high-resolution inspection to wide area mapping from a single lightweight and easy to deploy sensor.

The Echoscope4G Surface uses the same proprietary technology to generate real-time 3D images and mapping as the larger Echoscope and is operated using the same familiar topsides CodaOctopus® Underwater Survey Explorer (USE) and CodaOctopus® Construction Monitoring Software (CMS) while remaining fully compatible with all our existing 3D hardware products and accessories such as dual and single axis rotators, power supply units, and mounting poles.

The benefits of this lighter, smaller Surface system are extensive for small operating platforms, making projects more efficient without compromising on image fidelity, performance, or capability. The Echoscope4G Surface significantly increases the productivity of subsea projects that require the live monitoring of underwater operations, making it an ideal tool for breakwater construction, port security, marine construction, and underwater inspection tasks. By accurately visualizing the activity below the surface, this brand new innovation increases the efficiency of time-constrained projects as well as the safety of the teams that perform them.

Features & Benefits

  • Lightest real-time sonar in the world
  • High resolution real-time 3D visualization and mapping
  • High-confidence real-time decision making
  • Highest definition of multi-beam data output in the world
  • Increased productivity
  • Enhanced Safety
  • Expert 24/7 Technical Support

Optional Accessories

20 m cable length with Deutsch connector for Deck PSU

25 m cable length (state for PSU, 3-DPS or UIS)

50 m cable length with Deutsch connector for Deck PSU, supplied on drum

75 m cable length with Deutsch connector for Deck PSU, supplied on drum

100 m cable length with Deutsch connector for Deck PSU, supplied on drum

Echoscope operator/ training per day

20 m cable length with Deutsch connector for Deck PSU

25 m cable length (state for PSU, 3-DPS or UIS)

50 m cable length with Deutsch connector for Deck PSU, supplied on drum

75 m cable length with Deutsch connector for Deck PSU, supplied on drum

100 m cable length with Deutsch connector for Deck PSU, supplied on drum

Echoscope operator/ training per day

Round-the-Clock Support

Dedicated to enhanced customer service and support, TEAM members access a range of benefits alongside unsurpassed 24x7 technical support. Additionally, Coda Octopus offers on-site training for the products and Through Life Support for extended support that goes beyond regular service level support and warranties.
