Overview

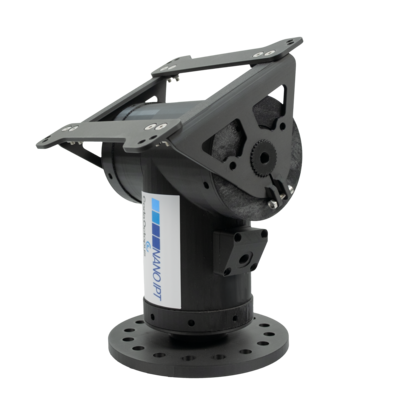

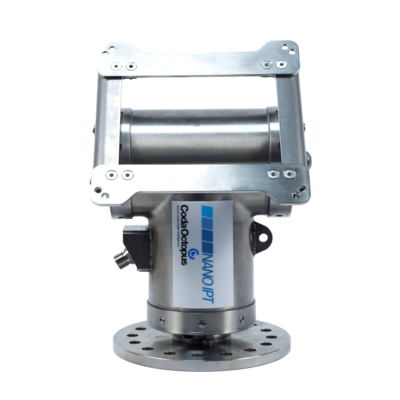

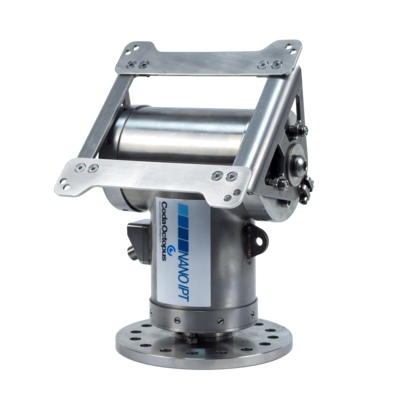

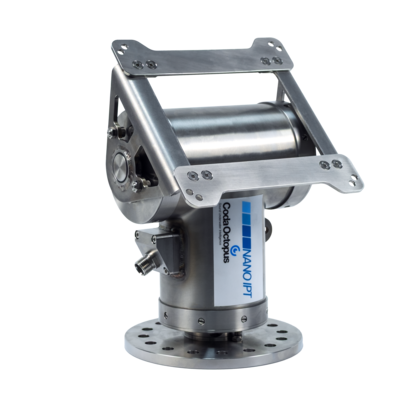

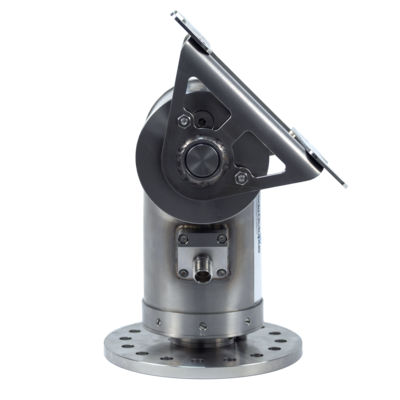

The NANO Gen Series Rotators form part of our range of Integrated Pan & Tilt (IPT) solutions, and are designed to support our Echoscope PIPE NANO Gen Series^® sonars and Echoscope PIPE^® C500 Surface variants.

Coda Octopus 3D Integrated Pan & Tilt products are high performance units designed to meet the demanding and exacting requirements of accurate orientation and position control of the real-time 3D Echoscope PIPE NANO Gen Series^® sonars, and the Echoscope PIPE^® C500 Surface sonars. Our NANO Gen Series IPT units operate as an  integrated solution within our 4G USE^® software application which eliminates the need for multiple patch testing during mapping and inspection tasks. All angular and positional offsets are dynamically calculated within the software for simple and accurate operation. Capable of station holding the NANO Gen Series 3D sonar systems in hydro-dynamic environments, the units deliver 51 Nm peak-torque.

Enclosed in a rugged stainless-steel housing, the NANO Gen Series IPT is designed for operation in depths up to 80m, incorporating high-torque motors, low-backlash gear boxes and high-precision encoders as standard, the units meet the demanding operational requirements of marine applications.
