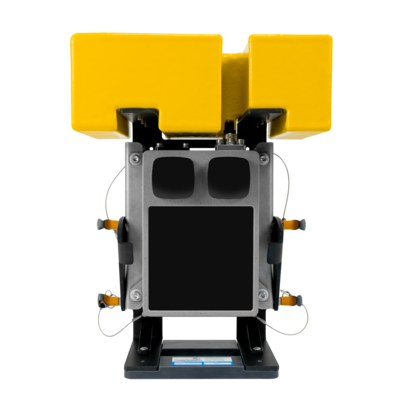

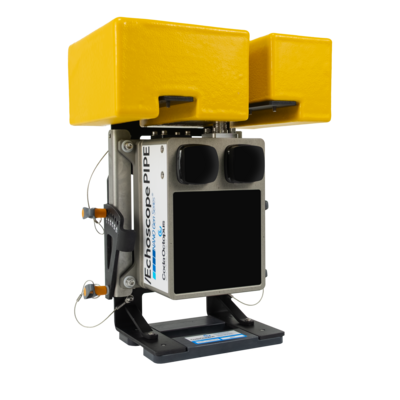

NANO Handheld
3D
NANO Handheld Sonar Deployment
Interested in a Coda Product?
Send us your request and our agents will contact you

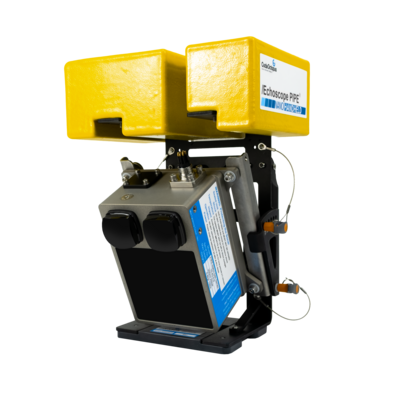

NANO Handheld Tilted Down

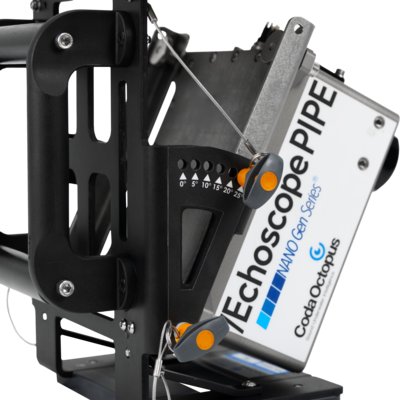

NANO Handheld Tilt Angles
Overview
The Echoscope PIPE NANO Gen Series® Handheld Frame makes it easy and comfortable for a diver to manually use one of our ultra-compact NANO Gen Series® sonars. With Real-Time 3D sonar data relayed to the topside Dive Supervision team, the NANO Handheld Frame gives divers clear vision in low and/or zero visibility water conditions. Support for diving operations is enhanced by providing real-time high-resolution 3D images of live underwater operations including inspections, salvage, interventions, tracking and navigation whilst recording a documented dive record.
The system is fully compatible with the Coda Octopus Diver Augmented Vision Display (DAVD and DAVD Flex) systems that allows real-time 3D data to be relayed directly to the diver via the DAVD Heads Up Display (HUD).
Features & Benefits
- Designed to Support Echoscope PIPE NANO Gen Series®, Providing 3D Imagery Available Direct to Diver and at Surface Simultaneously
- Can be used with DAVD and DAVD Flex Systems to Provide a Diver Head-Up Display (HUD), and Allows Direct Diver Visualization of the Sonar Data
- Designed with Buoyancy to give the Complete Unit a Neutrally Buoyant Weight in Water, Making Long-Term Use Effortless
- Handles on the Sides and Top/Bottom Allow for Convenient Operation
- Quick Release Pins to Allow Removal of the Sonar from the Buoyancy Assembly for Easy Deployment/Packing
- Sonar Can be Mounted Forward Looking or Tilted Downward Between 0-25° in 5° Increments
- In-Air Weight of Under 9kg
- Supports Adjustable Beamwidth
