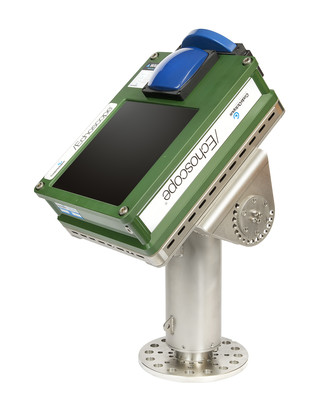

Echoscope® XD

Echoscope® XD

3D

eXtra dimension with wide-angle imaging and mapping.

Overview

The Echoscope® is the world’s first and highest resolution real-time 3D sonar. Built around unique patented technology, it generates a complete 3D model, composed of over 16,000 soundings, from each and every acoustic transmission. This 3D model is entirely refreshed up to 20 times per second with each new transmission.

With sounding densities far in excess of those generated by other sonars, the Echoscope is able to take advantage of patented statistical rendering techniques to further enhance the clarity of the image, presenting the user with an intuitive and easy-to-interpret image.

When monitoring underwater activity, even when the target and the Echoscope are moving independently of each other, the 3D imagery remains clear and accurate, giving the viewer an instant three-dimensional understanding of the underwater environment during operations.

In mapping and inspection tasks, the ping geometry of the Echoscope will allow a target to be visualized many times in a single pass, with each view taken from a different angle. This allows complex subsea structures to be mapped with a level of confidence and detail far beyond anything that can be achieved using alternative methods.

Whether deployed on inland waterway work or large-scale offshore oil and gas projects, the Echoscope real-time 3D sonar will provide clear, high definition imagery of the underwater environment.

Features & Benefits

  • New XD feature can be operated in Landscape or Portrait mode for increased horizontal or vertical coverage in critical applications
  • High definition 3D sonar image generated in real-time
  • Mosaicing capability
  • Displays complex moving structures accurately
  • Accurate even in turbid water
  • Suitable for installation on vessels, ROV, barge, or crane
  • Accurate geo-referenced data
  • Accurate geo-referenced data
  • Versatile DTM output options
  • Very easy to use even by non-sonar experts such as crane operators and law enforcement officers

Choose a Product that Fits Your Needs

Echoscope XD Multi Frequency

Available with 600m & 3,000m rated Titanium backplane with Xsens

Optional Accessories

20 m cable length with Deutsch connector for Deck PSU

25 m cable length (state for PSU, 3-DPS or UIS)

50 m cable length with Deutsch connector for Deck PSU, supplied on drum

75 m cable length with Deutsch connector for Deck PSU, supplied on drum

100 m cable length with Deutsch connector for Deck PSU, supplied on drum

Echoscope operator/ training per day

20 m cable length with Deutsch connector for Deck PSU

25 m cable length (state for PSU, 3-DPS or UIS)

50 m cable length with Deutsch connector for Deck PSU, supplied on drum

75 m cable length with Deutsch connector for Deck PSU, supplied on drum

100 m cable length with Deutsch connector for Deck PSU, supplied on drum

Echoscope operator/ training per day
