Thermal Graphic Printer 120+

Thermal Graphic Printer 120+

Geo

With an excellent worldwide track record as robust and reliable thermal recorders, the Octopus 120+ produces high quality continuous images onto thermal paper or film and is ideal for hardcopy output of geophysical data.

Overview

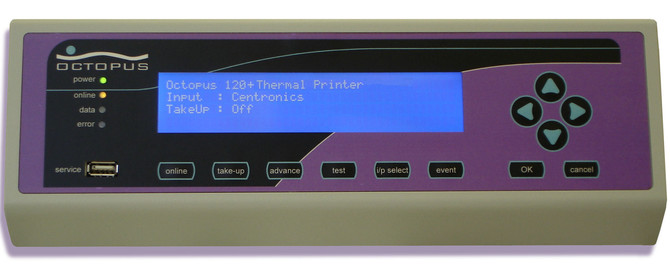

Thermal recorder for continuous greyscale printing

The Octopus 120+ benefits from a complete new electronic design and features a new menu driven interface. Producing high quality continuous images onto thermal paper or film, it is up to five times faster than the previous model, and is ideal for hard copy output of geophysical data.

With a wide range of interface options including Ethernet, USB and parallel (Centronics) and compatible with most PC based acquisition systems, the Octopus 120+ is easily interfaced with commonly used data sources. A unique three channel analog input capability has fully independent channel settings, enabling simultaneous display of geophysical data such as seismic and sidescan. Print resolution of 200 dpi at up to 256 grey levels, with a print width of 2368 pixels means that data can be printed at very high resolutions. With 20% greater print width than many other similar models, the Octopus 120+ is able to print three channels without compromising resolution.

Fully interchangeable with the original Octopus 120 printer, a selection of upgrade or trade-in options is available to current owners.

Thermal Paper

The thermal paper supplied by Coda Octopus is the only media tested and approved for use with all Octopus, Ultra, Dowty and printers. It combines high quality image output with low abrasion and minimal print head fouling.

Features & Benefits

  • All-new menu driven interface
  • 12" print width
  • Ethernet, USB and parallel interfaces
  • 3 channel analogue input - fully independent and easily configured
  • 200 dpi print resolution
  • Up to 256 grey-shades
  • Sidescan and seismic data printed together
  • Wider print widths for maximum resolution
  • Compatible with most systems, including analogue interfaces

Round-the-Clock Support

Dedicated to enhanced customer service and support, TEAM members access a range of benefits alongside unsurpassed 24x7 technical support. Additionally, Coda Octopus offers on-site training for the products and Through Life Support for extended support that goes beyond regular service level support and warranties.
