Integrated Single Axis Rotator (ISAR)

Integrated Single Axis Rotator (ISAR)

3D

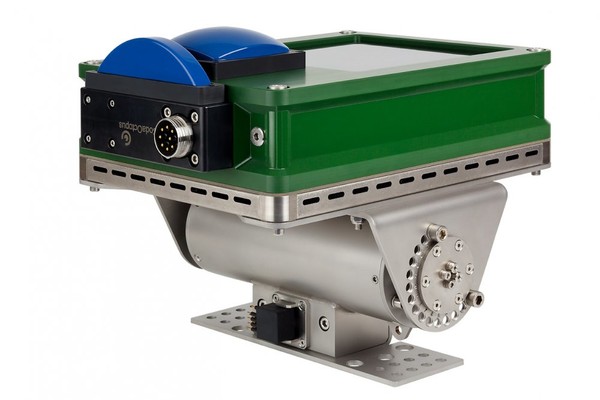

3D Integrated Single Axis Rotator (ISAR)

Overview

Our Integrated Single Axis Rotator (ISAR) units operate as an integrated solution within the CodaOctopus® Underwater Survey Explorer (USE) software application. The software integration of the rotator unit with the Echoscope® eliminates the need for multiple patch testing during mapping and inspection tasks. All angular and positional offsets are dynamically calculated within the software for accurate and simple operation.

Incorporating high-torque motors, low-backlash gearboxes, and high precision encoders as standard, capable of station holding the 3D sonar systems in hydro-dynamic environments, the units deliver a maximum of 94-newton meter torque. Enclosed in rugged aluminum or stainless-steel housings, the units are designed for operation to depths of 500 meters or 3000 meters. The ISAR is supplied with either a surface vessel pack incorporating a deck Power Supply Unit and 20 meter cable and mounting bracket or as an ROV pack with a 5 meter whip cable, deck test cable, and mounting bracket.

The ISAR can also be supplied with a stand-alone application for control of the unit out-with Coda Octopus software. The data o/p messaging allows for user-defined update rates when moving for angular position and the data command protocol and message o/p format is very simple and can be via serial or Ethernet for integration with different software packages.

Features & Benefits

  • Includes rugged mounting plate to simplify mounting on a pole or ROV
  • Hard stop index to simplify configuration of angular range of movement
  • Orientation option for sonar mount in portrait and landscape mode
  • Interfaces with heading data to report true heading when used in the pan axis
  • Integrated with the Coda Octopus Underwater Survey Explorer software
  • Point-and-click positioning of ISAR in USE 2D control window
  • Stand-alone application available for control out-with USE
  • User-defined step values for indexed movement
  • User-defined GOTO controls for commonly used project viewpoints

Choose a Product that Fits Your Needs

ISAR-500

Depth Rating 500m (1650 ft)
High accuracy gearbox available on request

ISAR-3000

Depth Rating 3000m (9900 ft)
High accuracy gearbox available on request

ISAR Aluminium Construction (Vessel solution)

Available in 500m and 3000m. Includes PSU, 20m deck cable, mounting bracket

ISAR Aluminium Construction (ROV Solution)

Available in 500m and 3000m. Includes ROV whip cable, 20m test cable, mounting bracket

ISAR Stainless Steel Construction (Vessel solution)

Available in 500m and 3000m. Includes PSU, 20m deck cable, mounting bracket

ISAR Stainless Steel Construction (ROV Solution)

Available in 500m and 3000m. Includes ROV whip cable, 20m test cable, mounting bracket

Optional Accessories

ISAR/IPT Power Supply with Peli-case

20m Cable

ROV Whip Cable (3000m depth rating) 5m

50 m cable length

75 m cable length

100 m cable length

ISAR/IPT Power Supply with Peli-case

20m Cable

ROV Whip Cable (3000m depth rating) 5m

50 m cable length

75 m cable length

100 m cable length

Round-the-Clock Support

Dedicated to enhanced customer service and support, TEAM members access a range of benefits alongside unsurpassed 24x7 technical support. Additionally, Coda Octopus offers on-site training for the products and Through Life Support for extended support that goes beyond regular service level support and warranties.
